15T Easy Operation With Steering Wheel Electric Transfer Trolley
| Place of Origin | Xinxiang |
|---|---|
| 브랜드 이름 | BEFANBY |
| 인증 | CE,SGS,ISO9001 |
| Model Number | KPT-3T |
| Minimum Order Quantity | 1 pcs |
| 가격 | 협상 가능 |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 30-40 days as usual delivery,20-30days for urgent delivery |
| Payment Terms | 30% deposit by T/T in advance,70%balance by T/T before dispatch |
| Supply Ability | 1500 sets one year |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Application | factory transport | Load capacity | 70T |
|---|---|---|---|
| Car size | Customized | Exported countries | Singapore, Australia, South Africa, Mexico |
| Electrical parts | Siemens, Schneider, Nord | Safety devices | Warning lamp, siren, bumper |
| Power Supply | Cable |
제품 설명

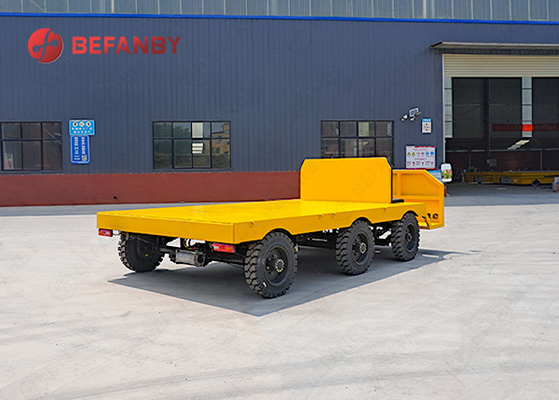

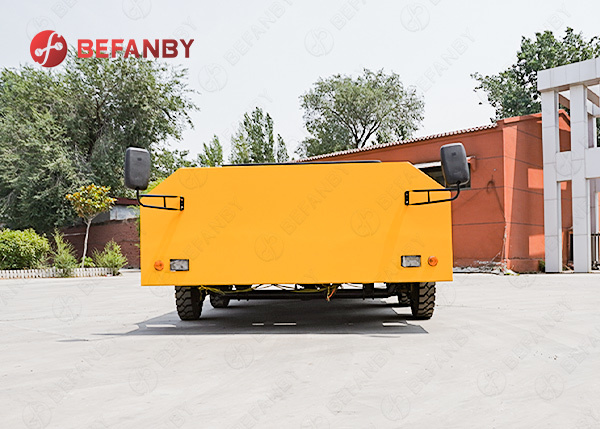

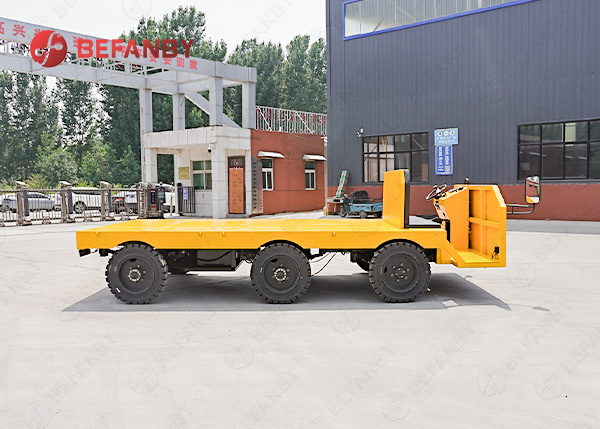

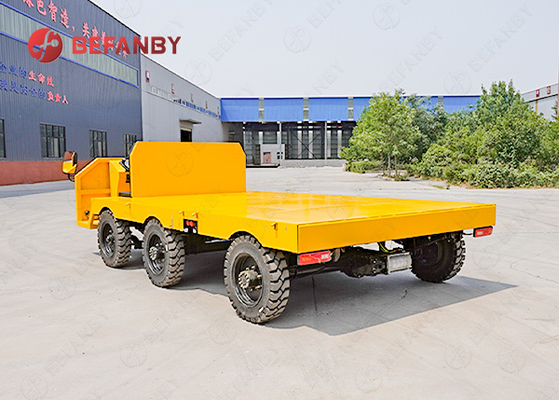

15T Easy Operation With Steering Wheel Electric Transfer Trolley
Product Description
This innovative trackless transfer cart with steering wheel is a flexible and efficient intelligent transport equipment, suitable for various work places such as industrial plants, workshops, warehouses, etc. that do not require track laying. Suitable for more workshops, warehouses, indoor and outdoor occasions, etc. This model is equipped with a steering wheel steering system, which has stronger controllability and flexibility compared to traditional fixed tracks.
Technical Parameter
| Model | KPT-2T | KPT-5T | KPT-10T | KPT-16T | KPT-20T | KPT-25T | KPT-30T | KPT-40T | KPT-50T | KPT-63T | KPT-80T | KPT-100T | KPT-150 | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rai Ilnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Wight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
|
Company Profile
Main Parts
Advantages
The vehicle uses batteries as a power source, which is green and environmentally friendly and can achieve long-term continuous operation. The cart body structure is sturdy and has strong carrying capacity. The platform size, load tonnage, and operating speed can be customized according to the actual working conditions of the customer. The operating system supports dual modes of steering wheel manual driving and automatic navigation. It can be driven and operated by personnel, or integrated with laser, magnetic stripe or visual navigation system to achieve automatic operation.
Application
This steering wheel trackless transfer cart is widely used in machinery manufacturing, steel transportation, warehousing and logistics industries, and is suitable for transporting heavy equipment, materials, coils, etc. Its flexible driving ability and high degree of customization make it an important equipment for improving handling efficiency and optimizing production processes.
