12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 재료 | Q235 | 실행 속도 | 0-20m/분 |
|---|---|---|---|
| 달리기 거리 | 고객의 요구에 따라 | 보증 | 18개월 |
| 부하 용량 | 1-1000T | 애플리케이션 | 산업 분야, 철강, 철물 취급, 자재 취급 장비 |
| 포트 | Qingdao/Tianjin/Shanghai | 색상 | 맞춤형 |
| 전원공급장치 | 배터리 전원 공급 장치 | 작업 유형 | 손 매달린 장식 + 리모콘 |
| 철도와 휠 | 절연된 소재는 추가될 것입니다 |
제품 설명

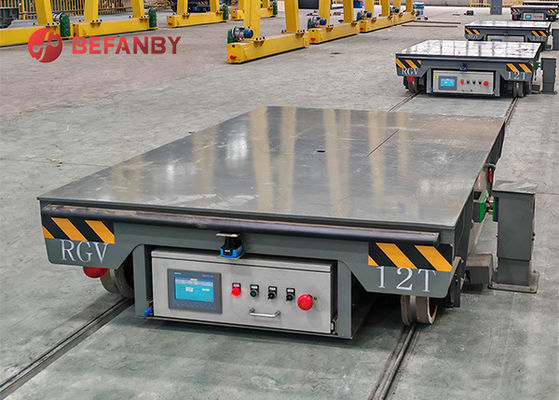

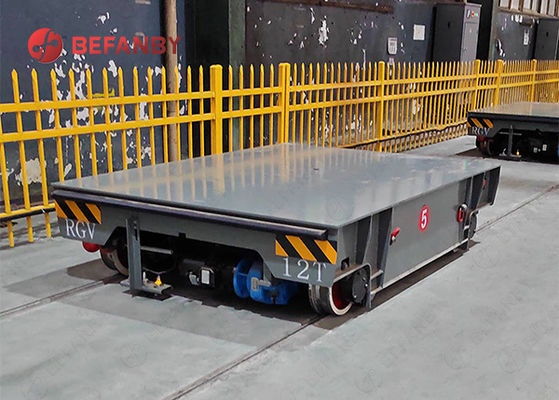

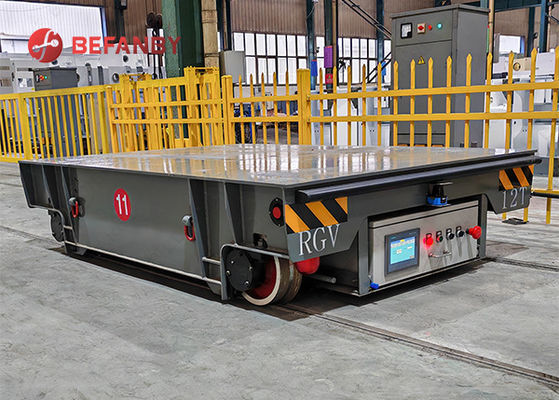

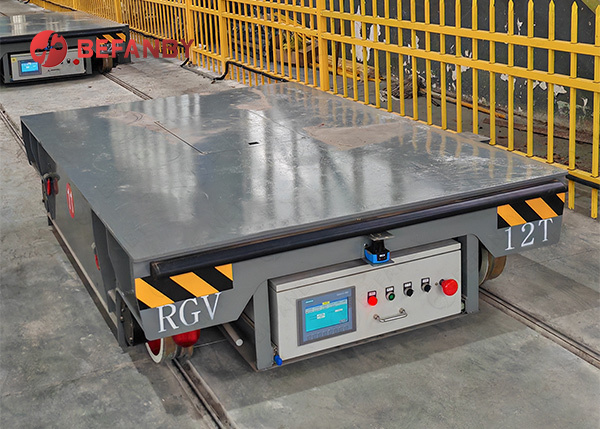

12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart
1. Product Introduce
flat carts power supply system custom manufacture flat cars
|
The RGV (Rail Guide Vehicle) intelligent rail transport vehicle is suitable for both indoor and outdoor operation in factories, enabling intelligent scheduling across multiple workstations and production lines, providing enterprises with a more efficient, safer, and more flexible material handling solution. |
|
01 Intelligent Operation Control The RGV is equipped with an advanced intelligent control system, and the track route can be customized according to customer requirements. It features precise stopping and bidirectional operation. It supports multi-point production line fixed-point stopping, enabling fully automated scheduling and significantly improving production line collaboration efficiency. |
factory manufacturer flat cars custom manufacture flat carts high speed rail factory manufacturer flat cars custom manufacture flat carts high speed rail
|
Please contact us if you's like to learn more details and get the quotation. BEFANBY have over 16 years' experience in the material handling fields. |
2.Appliacations
flat carts power supply system custom manufacture flat cars
3. Befanby Material Handling Equipment Introduce
factory manufacturer flat cars custom manufacture flat carts high speed rail
The transfer carts factory manufacturer material handling equipment used in warehouses used to carry heavy objects in the workshop. Generally speaking, the driving behavior on the track is limited. In order to solve these problems, Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. has developed non-standard vehicles such as turntables, turning vehicles, and shuttle vehicles to assist in the use. Industrial rail flat cars are powered by KPX battery, KPD low-voltage rail power supply, KPJ cable reel power supply and KPC trolley line power supply; the track laying requirements of rail flat cars need to be appropriately based on power supply and factory conditions, such as low voltage Rail power supply requires insulation treatment; high temperature resistance treatment is required under high temperature conditions. In addition, the customization of industrial rail cars needs to be customized according to the specific needs of users, and the size of the design needs to be calculated by the technicians for the load.
Welcome to inquiry us if you'd like to learn more
4. Technique Parameter
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
