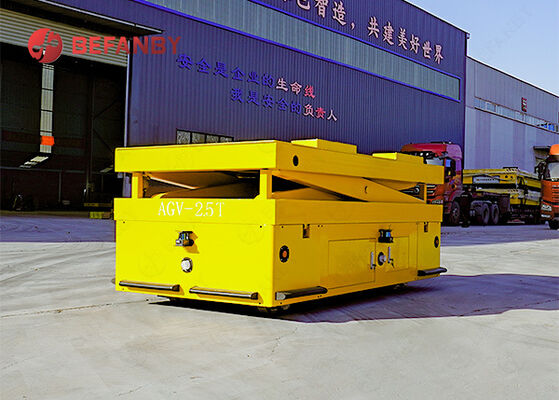

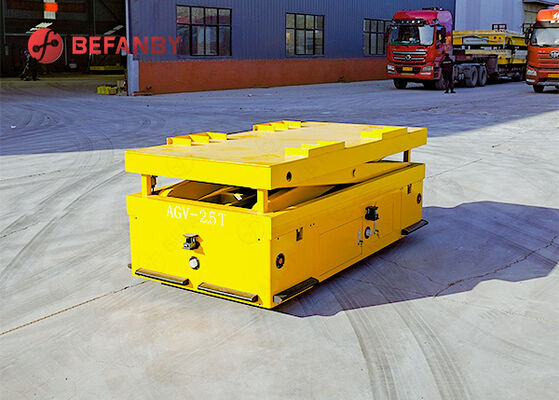

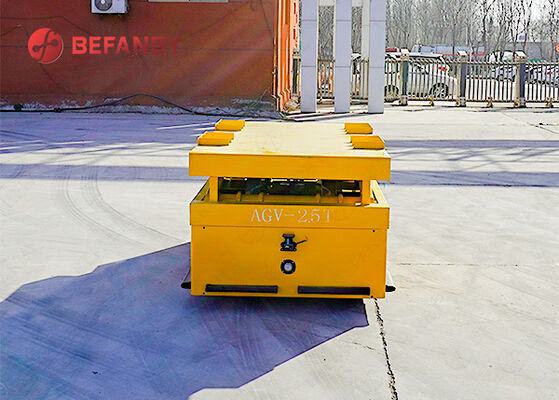

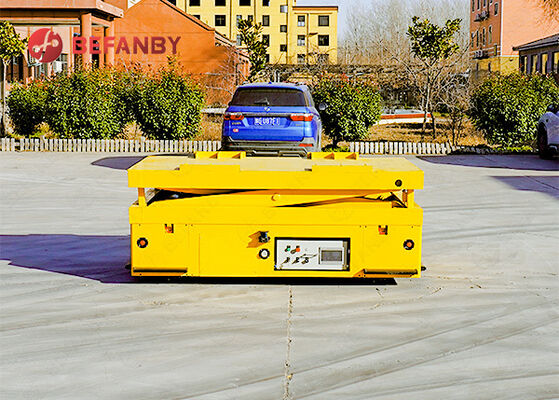

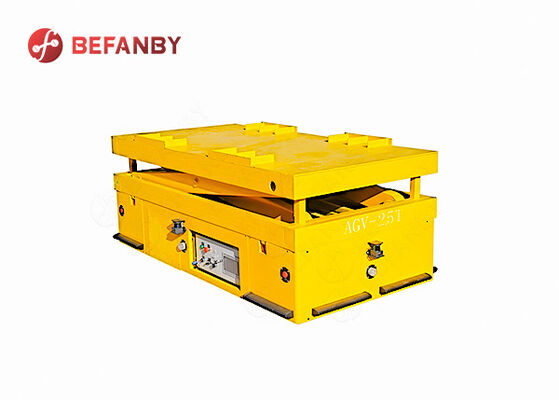

2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System
제품 상세 정보
| 색상 | 맞춤형 | 보증 | 24개월 |
|---|---|---|---|
| 부하 용량 | 맞춤형 | 전원공급장치 | 배터리로 작동됨 |
| 포트 | Qingdao/Tianjin/Shanghai | 애플리케이션 | 항공 작업, 공장, 워크숍, 건설 현장 |
| 재료 | 강철 |
제품 설명
Capacity 2.5T Automatic Guided Vehicle with Lift Device
Product Overview
The AGV (Automated Guided Vehicle) Intelligent Trackless Transporter is an advanced piece of automated material handling equipment that incorporates intelligent navigation systems and scissor-lift capabilities. It is widely utilized across various sectors, including manufacturing, production lines, and factory operations. Thanks to its flexible and highly efficient characteristics, it significantly enhances both the efficiency and safety of material handling processes.
Product Features
- Scissor-Lift Mechanism: Flexible lifting for diverse applications with high stability and load-bearing capacity, ensuring material safety during operations and allowing height adjustments for different working environments.
Intelligent Navigation System
The AGV transfer cart is equipped with an advanced intelligent navigation system that integrates multiple technologies—including LiDAR, vision sensors, and inertial navigation—to enable autonomous obstacle avoidance, precise positioning, and intelligent path planning. The system monitors the vehicle's position in real-time, ensuring stable operation within complex environments without the need for human intervention.
Technical Specifications
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size - Length (mm) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size - Width (mm) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size - Height (mm) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power (kW) | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 |
| Battery Capacity (Ah) | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Max Wheel Load (kN) | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight (t) | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
Company Profile
Additional Features
Shipping & Delivery
Related Products
Frequently Asked Questions
Q: How can I operate the transfer cart?
A: Please don't worry, dear friend. The English user manual and parts manual will be delivered with your items together.
Q: How to ensure your product quality?
A: We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary, our installation engineer will go to your factory to guide the installation.
Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
Q: Whether there is professional technician assist our installation?
A: Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
