Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle
| Place of Origin | Henan,China |
|---|---|
| 브랜드 이름 | BEFANBY |
| 인증 | CE,SGS,ISO9001 |
| Model Number | lift platform |
| Minimum Order Quantity | 1 set/sets |
| 가격 | 협상 가능 |
| Packaging Details | The movable lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Color | Customized | Warranty | 24 months |
|---|---|---|---|
| Load capacity | Customized | Power supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | aerial working,factory,workshop,construction site |
| Materials | Steel | ||
| 강조하다 | intelligent rail transfer cart,flip arm annealing furnace,guided vehicle rail cart |
||
제품 설명

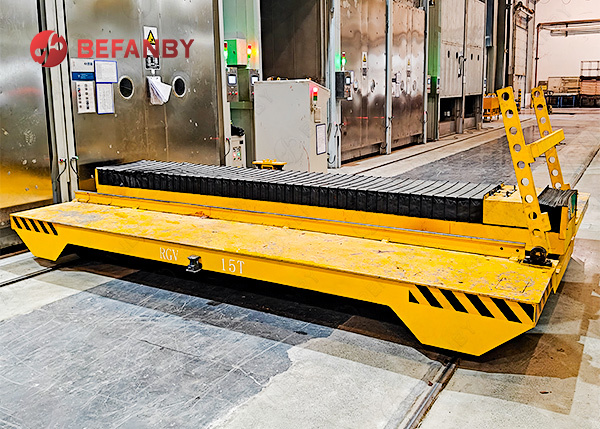

Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle
Product Description

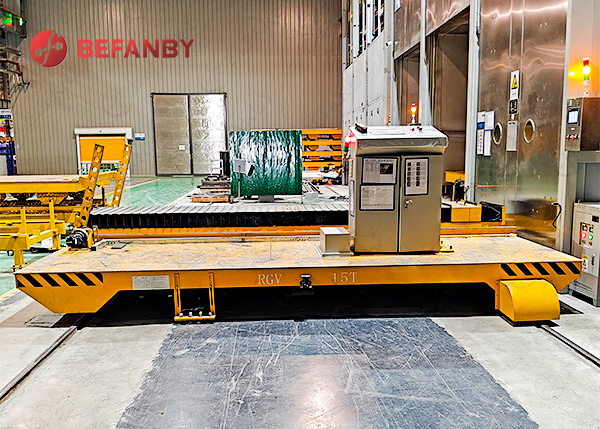

Recently, the RGV intelligent transporter developed and produced by our company was successfully delivered and put into use. It is mainly used in the automatic transportation and docking system of annealing furnaces. This transporter has high temperature tolerance, intelligent path control and high-precision positioning functions. It can operate continuously and stably in high temperature and complex environments, improving the overall automation level of the workshop and transportation safety efficiency.
Product Details

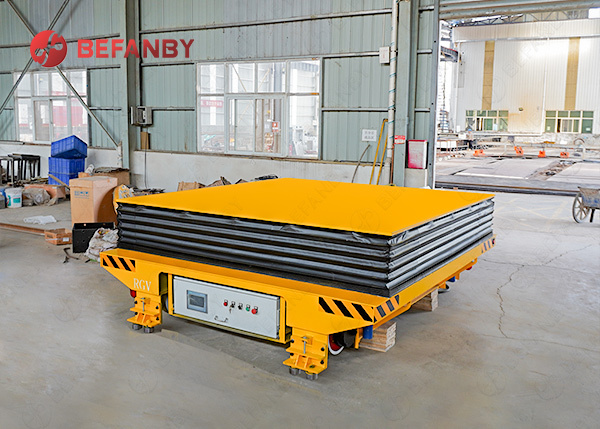

The rail transfer cart supports multiple functional customization, such as adding rollers, chain conveyors, hydraulic/scissor lifts or coil racks on the vehicle body to achieve precise docking with the production line and automated material flow. The vehicle structure is sturdy and durable, the operating system is stable and safe, and it can be operated by wireless remote control. Further improve the operating efficiency and automation level.
Product Parameter
| Model | KPD-10t | KPD-16t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | KPD-80t | KPD-100t | KPD-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Product Feature
This design of RGV intelligent transporter adopts high temperature resistant body structure, and the table is equipped with refractory bricks. It can effectively protect the service life of the body. At the same time, the core electrical components have undergone special insulation and protection treatment, which can operate for a long time under high temperature conditions, keeping the system responsive and running smoothly.
The equipment supports intelligent docking with multiple processes such as annealing furnaces, conveyor lines, and material racks, and has intelligent handling capabilities such as automatic loading and unloading and precise positioning, which greatly reduces manual operations and optimizes material flow efficiency.
Our Company
Support Customized
Related Products
Our After Service
- Our commitment:
- The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
- 16 hours engineering service and 24 hours internet service for our customers
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
Product Tap: Material Handling Cart , Rail Transfer Cart
