Easy Operation Factory Use with V Frame Device Rail Transfer Cart
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 색상 | 사용자 정의 | 보증 | 24 개월 |
|---|---|---|---|
| 로드 용량 | 사용자 정의 | 전원 공급 장치 | 배터리 작동 |
| 포트 | Qingdao/Tianjin/Shanghai | 애플리케이션 | 항공 작업, 공장, 워크숍, 건설 현장 |
| 재료 | 강철 |
제품 설명
Easy Operation Factory Use with V Frame Device Rail Transfer Cart
Product Description

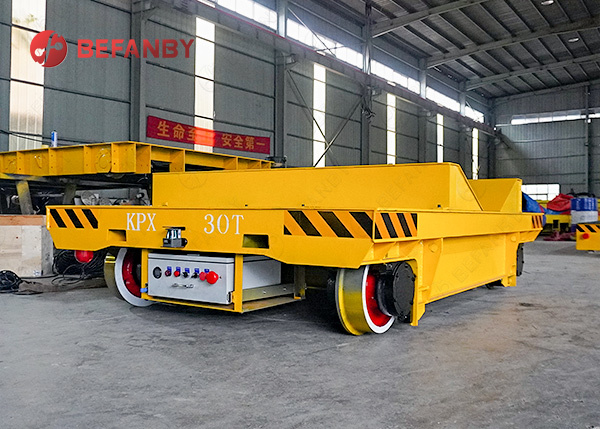

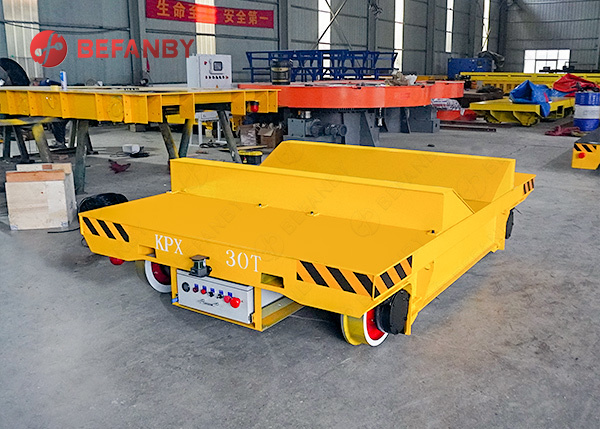

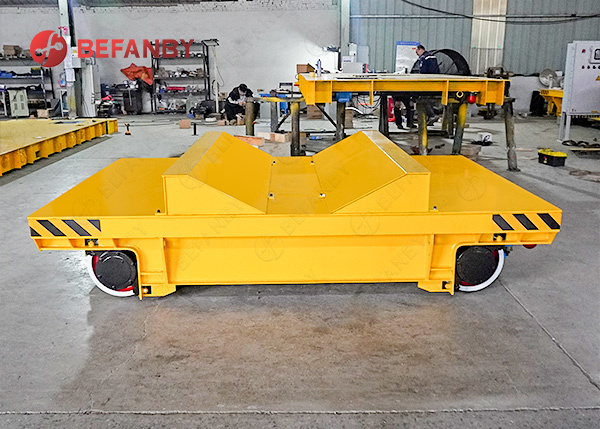

The transfer cart featured here is equipped with a coil support, a specialized transport device designed for coiled materials (such as steel coils, aluminum coils, copper coils, and paper coils). It operates on fixed rails for smooth and reliable operation, and its load capacity can be customized to suit specific needs, ranging from 1 to 100 tons. Its platform is equipped with a specially designed V-shaped or curved coil support, which securely supports the material during transport, preventing rolling and shifting during transportation and ensuring stability. Furthermore, the coil support can be adjusted and disassembled to increase the platform size.
Product Parameter
| Model | KPT-2T | KPT-5T | KPT-10T | KPT-16T | KPT-20T | KPT-25T | KPT-30T | KPT-40T | KPT-50T | KPT-63T | KPT-80T | KPT-100T | KPT-150 | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rai Ilnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Wight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 |
QU100 |
|
Company Profile
Product Feature
Dedicated Coil Handling: The tabletop is equipped with a V-shaped or adjustable coil support frame, allowing for flexible adjustment based on coil size, accommodating a wide range of coil sizes.
Stable Power Drive: Optional power supply options include battery power, low-voltage rail power, or busbar power, ensuring smooth operation and adaptability to diverse work environments.
High Load Capacity: Customizable load capacities ranging from 10 to 200 tons meet the coil transport needs of large-scale heavy industry, metallurgy, steel, and other industries.
Safe Operation: The vehicle body structure is stable, and the tabletop can be equipped with high-temperature resistant materials to ensure safe coil handling even in high-temperature, explosion-proof, and other challenging environments.
Shipping
Related Products
FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
Product Tap: Material Handling Cart , Rail Transfer Cart
