x제품 상세 정보
| 색상 | 맞춤형 | 보증 | 24개월 |
|---|---|---|---|
| 부하 용량 | 맞춤형 | 전원공급장치 | 배터리로 작동됨 |
| 포트 | Qingdao/Tianjin/Shanghai | 애플리케이션 | 공장, 워크샵, 건설 현장 |
| 재료 | 강철 | ||
| 강조하다 | 10 Ton Load Capacity Battery Transfer Cart,Long Lifetime Transfer Vehicle,Steel Welding Frame Material Handling Cart |
||
제품 설명

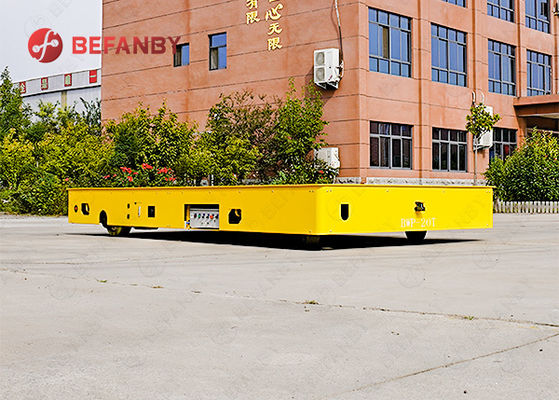

10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart
This 10-ton capacity trackless transfer cart was custom-designed for an Australian customer based on their specific site conditions. Designed for high-strength material handling, it features a welded steel frame construction, ensuring stability and reliability during prolonged, heavy-duty operation.
Its wheels utilize polyurethane-coated construction, offering superior flexibility, slip resistance, and wear resistance, providing greater efficiency for material handling on production lines.
Product Details
Key Specifications
| Model | KPT-2T | KPT-5T | KPT-10T | KPT-16T | KPT-20T | KPT-25T | KPT-30T | KPT-40T | KPT-50T | KPT-63T | KPT-80T | KPT-100T | KPT-150 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 |
| Wheel Quantity (pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power (kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Running Distance (m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight (t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Product Features
- Trackless Design: This handling vehicle operates without tracks, making it suitable for various complex and changing work environments. It can operate flexibly on hard surfaces, supporting forward and backward movement, variable speed control, and other operational modes, greatly improving flexibility and transportation efficiency.
- Powerful Power System: Equipped with an advanced drive system using DC motor and battery power supply, allowing for smooth operation on various terrains. The power system is designed to handle heavy loads and continuous long-term operation, ensuring efficiency and stability during material transportation.
Industry Applications
Flexible Application Scenarios: Suitable for various trackless transportation needs, especially in situations with limited space and complex turns. It can be applied not only in factory workshops and warehousing logistics centers, but also provides reliable solutions in complex transportation environments.
Safety Assurance: This handling vehicle is equipped with multiple safety protection systems, including three-color warning lights and emergency stop devices, ensuring safety during high-load operation and effectively avoiding risks caused by operational errors or equipment malfunctions.
